1250tons plastic injection molding machine , Haijiang high pressure

Brand Name : Taihong

Model Number : HJF1250

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 20sets/month

Delivery Time : 30days

Packaging Details : Export standard

injection weight : 3744~6328

injection rate : 590~948

Clamp tonnage : 12500

Toggle stroke : 1600

Space between tie bars : 1260*1160

Machine dimension : 12.1*2.9*3.2

Contact Now

HJF-1250 injection molding machine

Stable Injection Device


A PID temperature control, precise temperature control of barrel.
There are three or four screws and barrels with optimal design
Respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics and the choice of product.
Two-guided direct line guided bar supports, double-balanced rapid injection.
The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision electronic device position detection enable accurate measurement.
Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge,
Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed.

SPECIFICATION HJF-1250
A B C

D
Screw diameter mm 100 110 120 130
Screw L/D Ratio L/D 23 22 20 18.6
Shot size(theoretical) cm³ 4160 5034 5991 7031
Injection weight(PS) g 3744 4530 5392 6328
Injection pressure Mpa 211 174 146 125
Injection rate g/s 590 720 867 948
Screw Speed rpm 100
Clamp tonnage KN 12500
Opening stroke mm 1600
Space between the tie bars mm 1260*1160
Max.Mold Height mm 1300
Min.Mold Height mm 500
Ejector stroke mm 360
Ejector tonnage KN 215
Max.pump pressure Mpa 16
Pump motor power KW 55+55
Heater power KW 59
Machine dimension(L*W*H) M 12.1*2.9*3.2
Machine weight T 53
Oil tank capacity L 2206

Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)

SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs


Product Tags:

pvc pipe fitting injection molding machine



servo motor injection molding machine


China 1250tons plastic injection molding machine , Haijiang high pressure factory

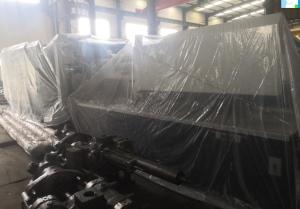

1250tons plastic injection molding machine , Haijiang high pressure Images
